Accessories Parts for UV and Ozone Sterilizer
UV LAMP AND OZONE LAMP:
- Single wavelength output at 254nm and dual wavelength output at 185nm and 254nm
- Lamp length: 357mm, 846mm, 1554mm
- Electronic ballast for UV lamp: 18W, 36W, 80W, 150W, Electricity: 220-240VAC; 50/60Hz
| UV lamp model |
Input (W)
|
Lamp current
|
Lamp length
|
Lamp diameter
|
Lamp life
|
Radiation output
|
Price
|
| GPH357T5L/4P |
17W
|
425mA
|
357mm
|
15mm
|
9000Hrs
|
5.7W
|
USD
|
| GPH793T5L/4P |
37W
|
425mA
|
793mm
|
15mm
|
9000Hrs
|
13W
|
USD
|
| GPH846T5L/SE/4P |
80W
|
800mA
|
846mm
|
15mm
|
9000Hrs
|
26W
|
USD
|
| GPH846T5L/SE/4P/VH |
80W
|
800mA
|
846mm
|
15mm
|
9000Hrs
|
26W
|
USD
|
|
GPH1554T5L/HO
|
145W
|
800mA
|
1554mm
|
15mm
|
9000Hrs
|
45W
|
USD
|
QUARTZ SLEEVE For UV Lamp
- High purity quartz to allow maximum UV rays transmission to achieve optimum sterilization.
- Quartz sleeves:
- ZP Quartz sleeve designed for UV immersion unit.
- Standard quartz sleeve:
- Tube length: 400mm, 890mm, 1600mm
- O.D: 23mm, I.D: 20mm, Thickness: 1.5mm
- Single Open End for UV lamps and Double Open End for Ozone generating UV lamp.
| Quartz sleeve for UV lamp model |
I.D
|
O.D
|
Thickness
|
Length
|
Open end
|
Price
|
| GPH357T5L/4P |
20mm
|
23mm
|
1.5mm
|
400mm
|
Single open end
|
USD
|
| GPH793T5L/4P |
20mm
|
23mm
|
1.5mm
|
890mm
|
Single open end
|
USD
|
| GPH846T5L/SE/4P |
20mm
|
23mm
|
1.5mm
|
890mm
|
Single open end
|
USD
|
| GPH846T5L/SE/4P/VH |
20mm
|
23mm
|
1.5mm
|
890mm
|
Double open end
|
USD
|
|
GPH1554T5L/HO
|
20mm
|
23mm
|
1.5mm
|
1600mm
|
Single open end
|
USD
|

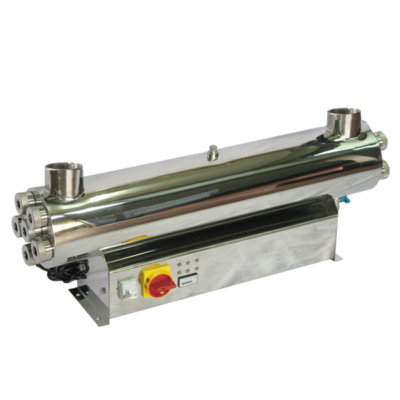

OUR UV STERILIZER HAVE 5 ADVANTAGES OVER GENERAL UV STERILIER
- We use a single piece of quartz sleeve + quartz holder to give much better seal with the female thread of S.S chamber; quartz sleeve well fitted with this holder by tough silicone ring. So it really is trouble free; no worry of water leak around quartz sleeve anymore.
- When you require to cleaning the outer surface of quartz sleeve; you just unscrew this holder single time, you can clean the quartz surface effectively.
- If you notice plastic plate with 4 screws; this is access to put UV lamp inside quartz sleeve = complete protect inside quartz sleeve.
- Our UV lamp well fitted inside quartz sleeve = no moving or no displacement; because we use S.S spring + plastic cap + 4 screws to firmly hold the UV lamp in position.
- We also provide translucent plastic viewer at this quartz sleeve holder to view the blue light of operating UV lamp.
