Description

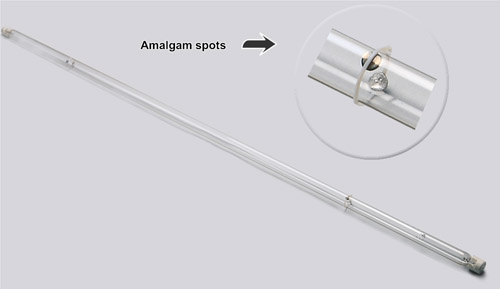

AMALGAM HIGH OUTPUT UV LAMP
Large Commercial UV Sterilizer AMALGAM UV-C Lamp. High-performance Amalgam lamps for Large Commercial UV Sterilizer Industrial System. High-performance Amalgam lamps are strong performers in the three key areas of 254nm UVC output, lamp efficiency and lamp life. Amalgam lamps produce over 400% more 254nm UVC output than conventional low-pressure UV lamps while maintaining a superior lamp efficiency. The operating life of amalgam lamps is up to 14,000 hours, depending on factors such as lamp operating conditions, a number of days on/off cycles and the duration of the off period. This is 3 to 4 times that of typical medium pressure lamps and almost twice that of standard low-pressure lamps. This long lamp life reduces UV System downtime and lamp replacement labor associated with standard low-pressure lamps by up to 50%. Similarly, the downtime associated with medium pressure systems is 3 to 4 times that of our amalgam systems.
| Model | Power | GPM | LPM | m3/h | Lamps q-ty | UV lamp life time | UV lamps length |
|---|---|---|---|---|---|---|---|
| UV105W/1L | 105W | 40.0 | 151 | 9.1 | 1 | 13,000 hrs | 843 mm |
| UV210W/2L | 210W | 80.0 | 303 | 18.2 | 2 | 13,000 hrs | 843 mm |
| UV315W/3L | 315W | 120.0 | 454 | 27.3 | 3 | 13,000 hrs | 843 mm |
| UV420W/4L | 420W | 160.0 | 606 | 36.3 | 4 | 13,000 hrs | 843 mm |
| UV630W/6L | 630W | 240.0 | 908 | 54.5 | 6 | 13,000 hrs | 843 mm |
| UV840W/8L | 840W | 280.0 | 1060 | 63.6 | 8 | 13,000 hrs | 843 mm |
