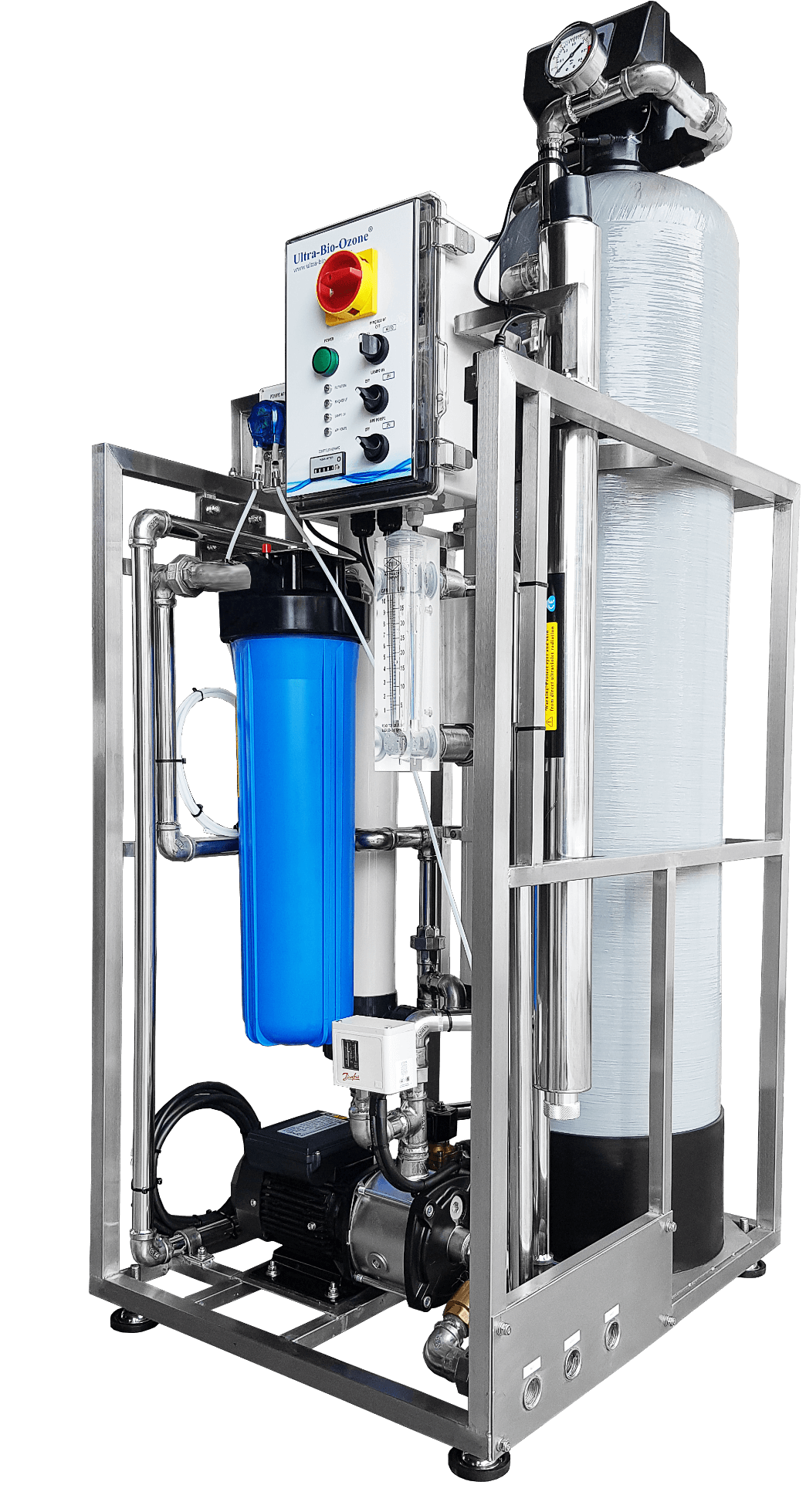

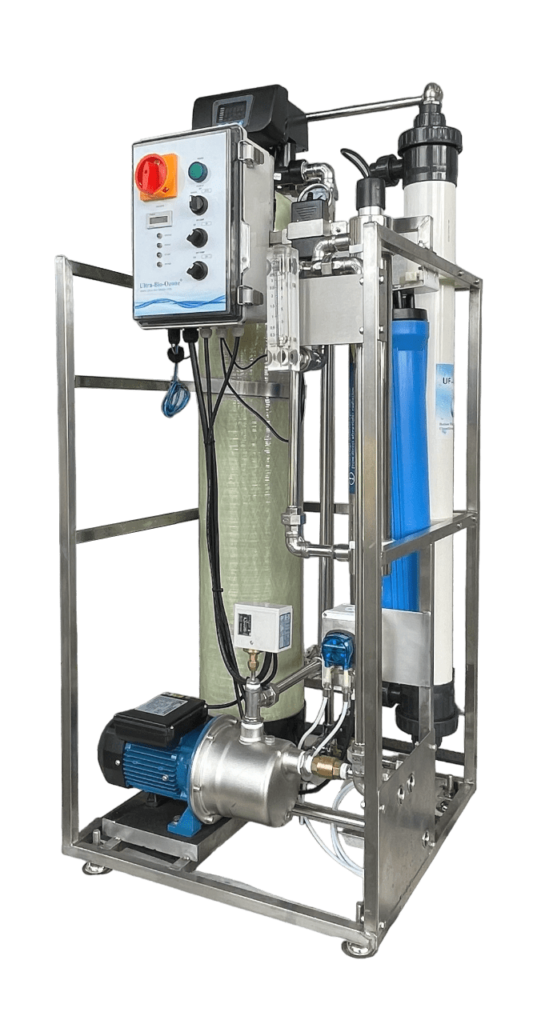

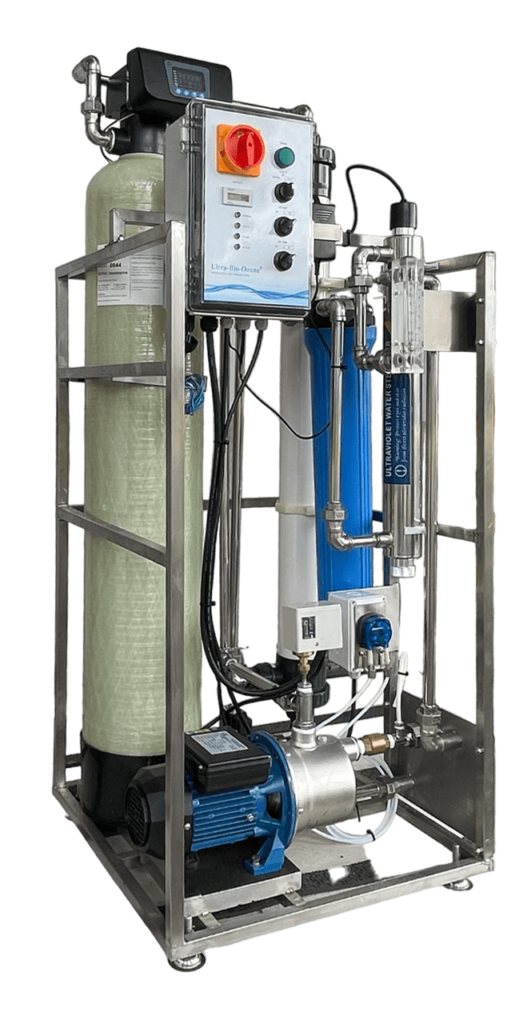

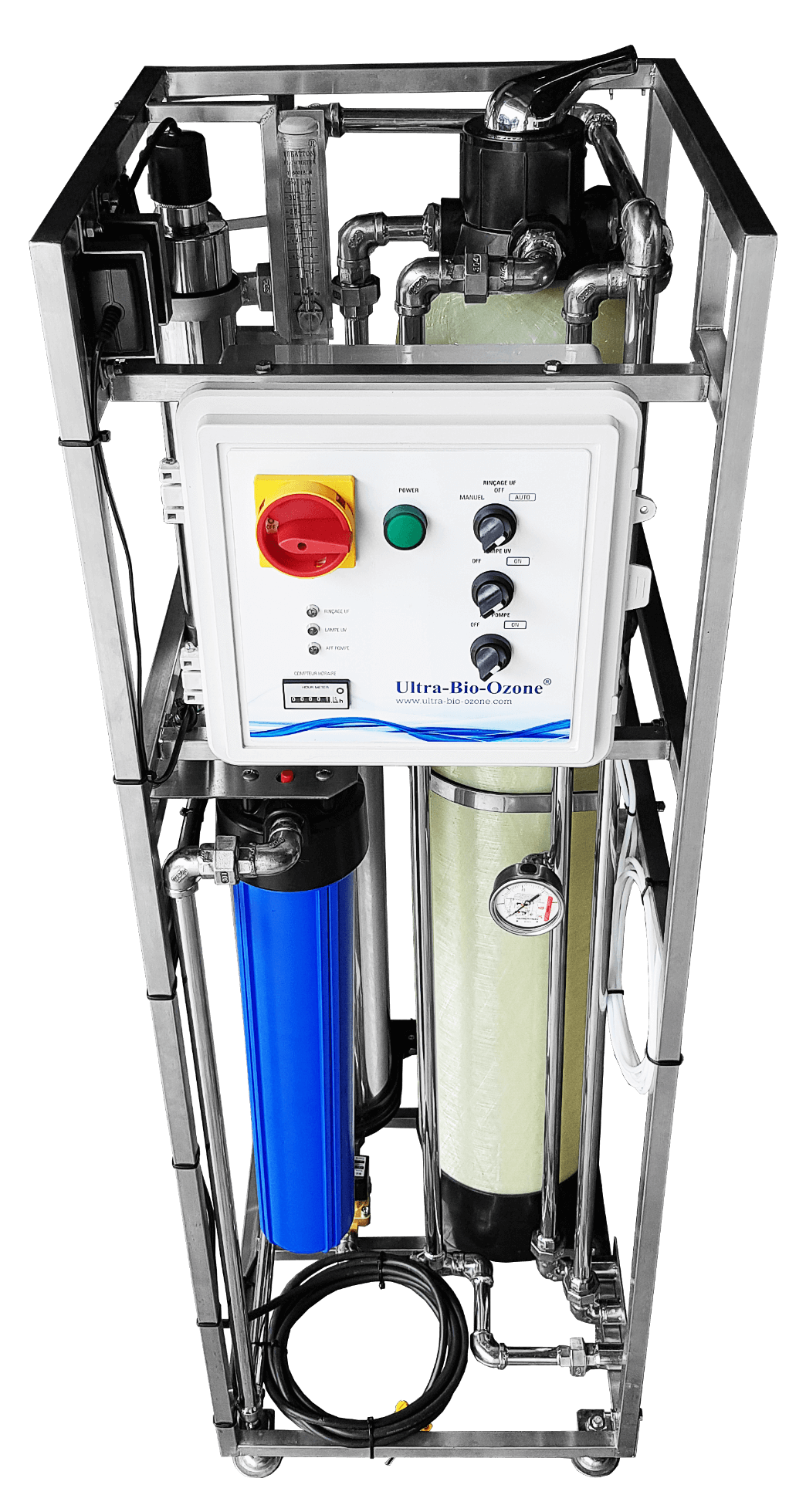

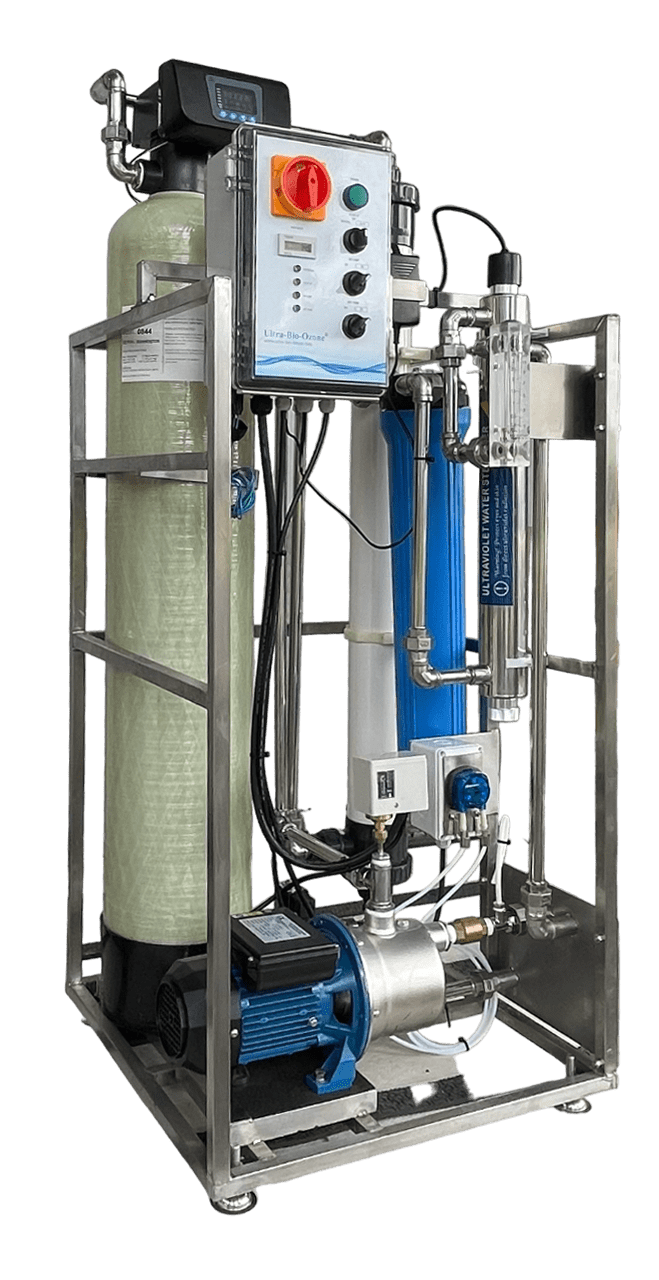

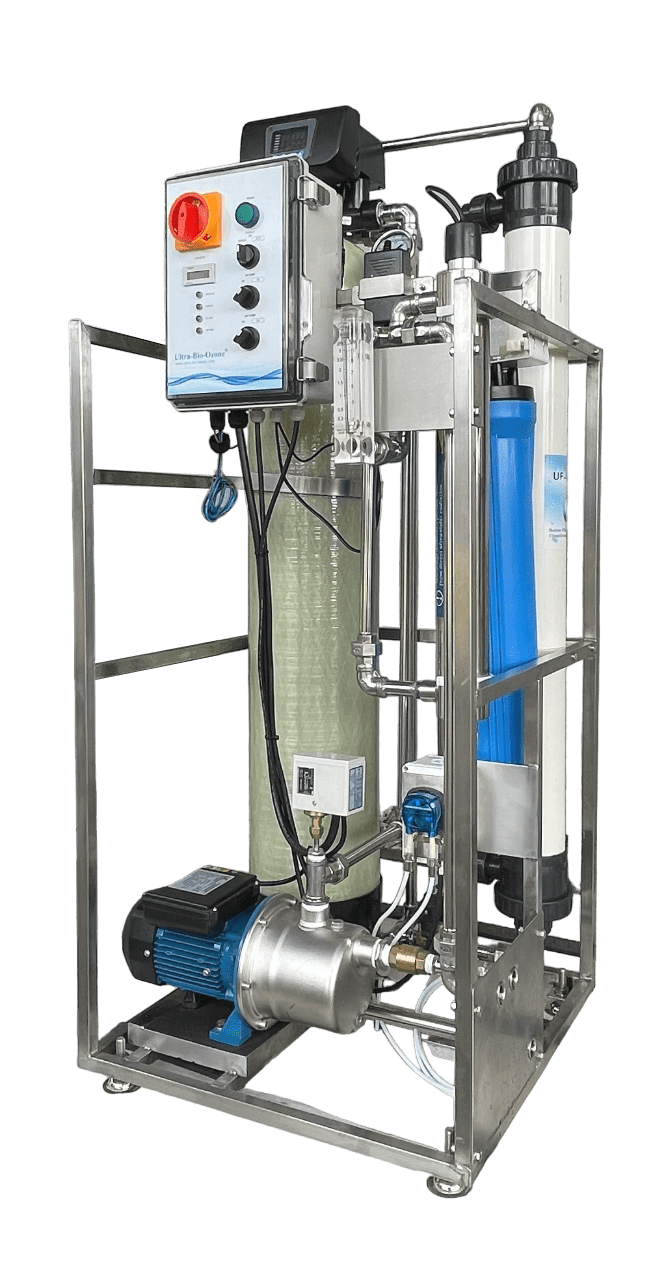

Water treatment system

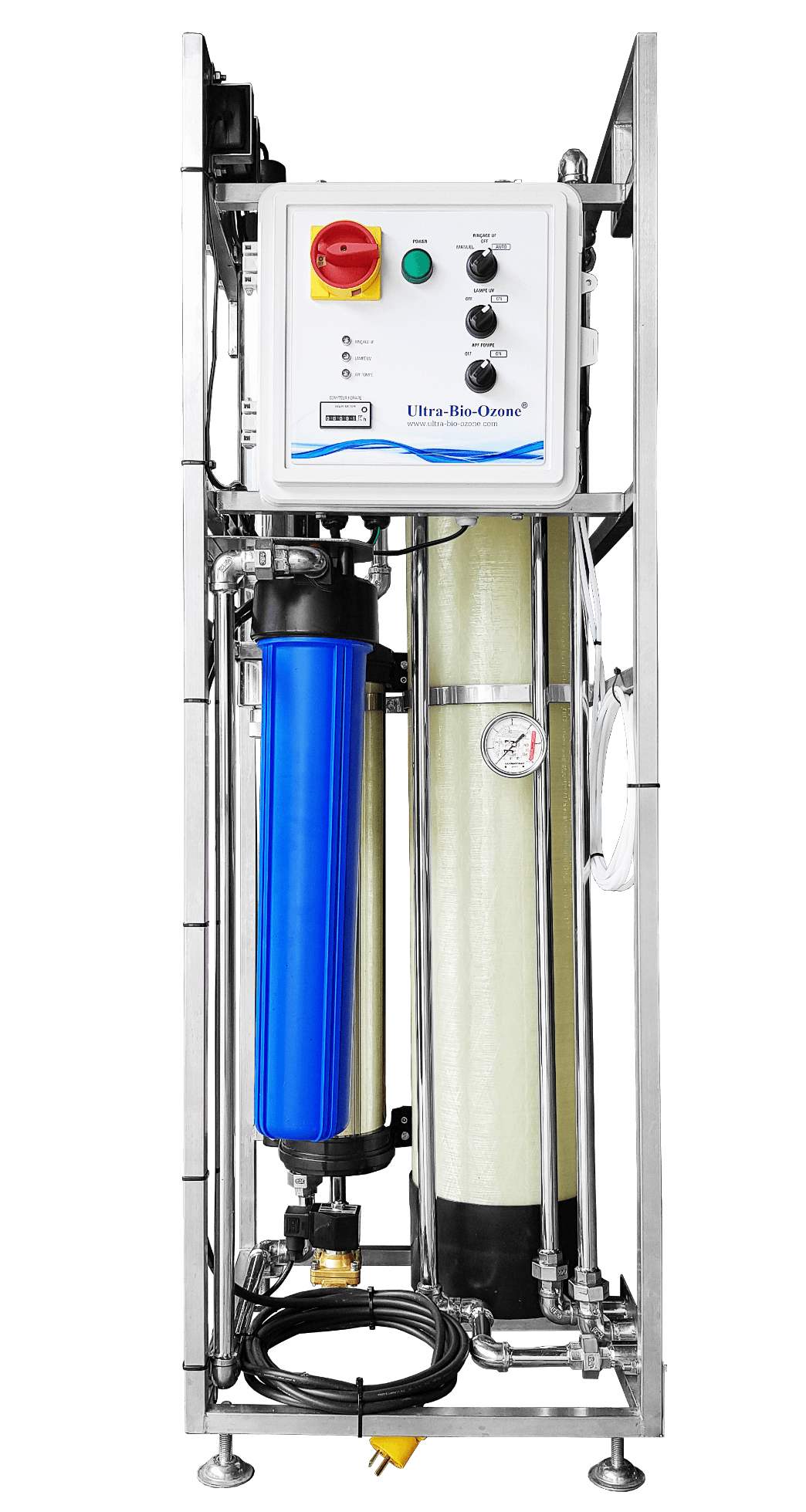

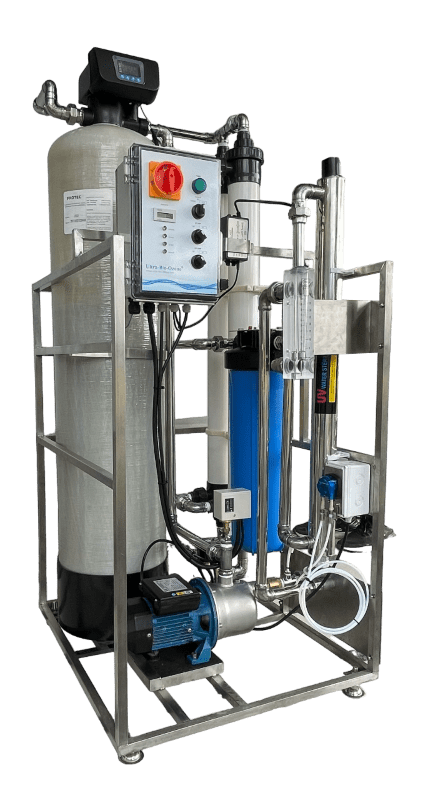

Specifications:

• Size: L84 x W62 x H158 cm
• Weight: 102 kg
• One Activated filter media tank
  • Fiberglass tank 12″ x 52″ (30.48 cm x 132.08 cm) , complete with manual backwash valve.
• One UV sterilizer, 55 watts, 220 Vac 50/60 Hz
• UF filter completed a with the automatic flush valve.
• One post carbon block filter, 4.5″ x 20″ (11.43 cm x 50.8 cm) cartridge length.
• One water flow meter.
• One water pressure gauge.

Additional feature:

• Multi-Spectrum Coagulant and Flocculant for eliminating manganese iron color, Clear up cloudy water. PRICE: 294 USD

(Include dosing pump, injector, PLC for control Injection, an injection pipe. All assembly in the waterproof control box and install in the system.)

Innovative high-efficiency water filtration system, integrating PRE-FILTRATION + ULTRAFILTRATION + UV + activated carbon water treatment techniques in a single system.

• This combination of technologies uses high quality water filters. It is 40 times more efficient than a sand filter, it can filter heavy metals such as iron, manganese, chromium, phosphate, etc…
• Incorporates a UV sterilization system to effectively kill bacteria and viruses.
• Ultrafiltration (UF) can filter down to 0.01 micron using a membrane to separate undesired materials. It filters bacteria and particles present in the water. Ultrafiltration (UF) technology is particularly popular in industrial applications.
• The activated carbon filter absorbs chemicals, odors, residual chlorine, heavy metals such as lead and copper, insecticides, detergents and high carbon products.

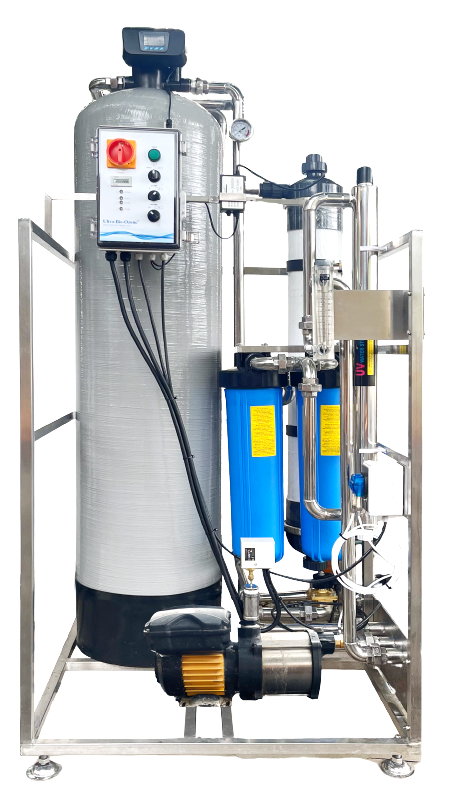

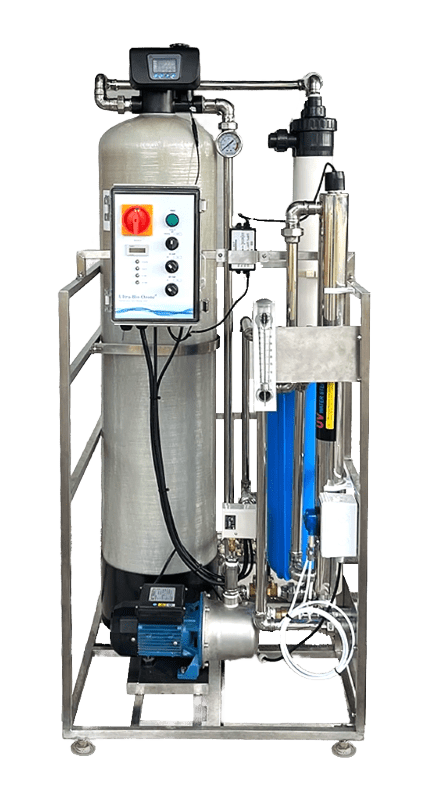

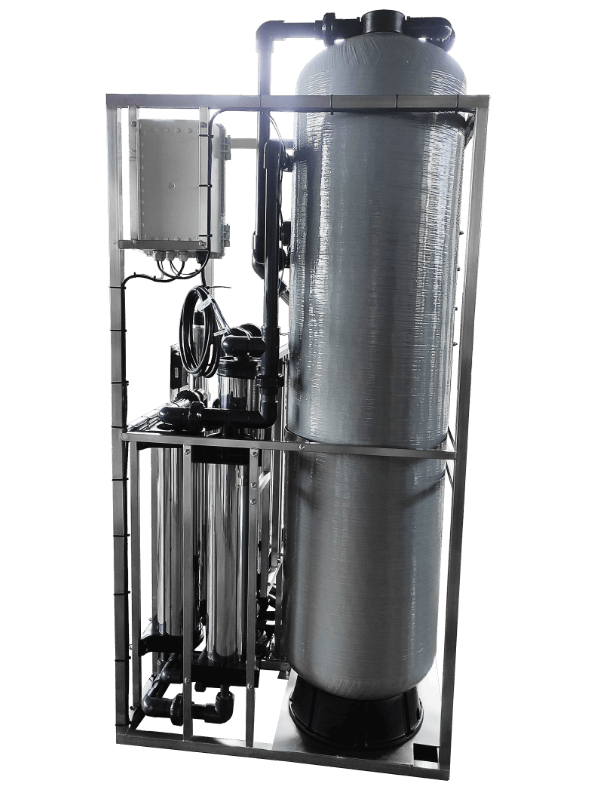

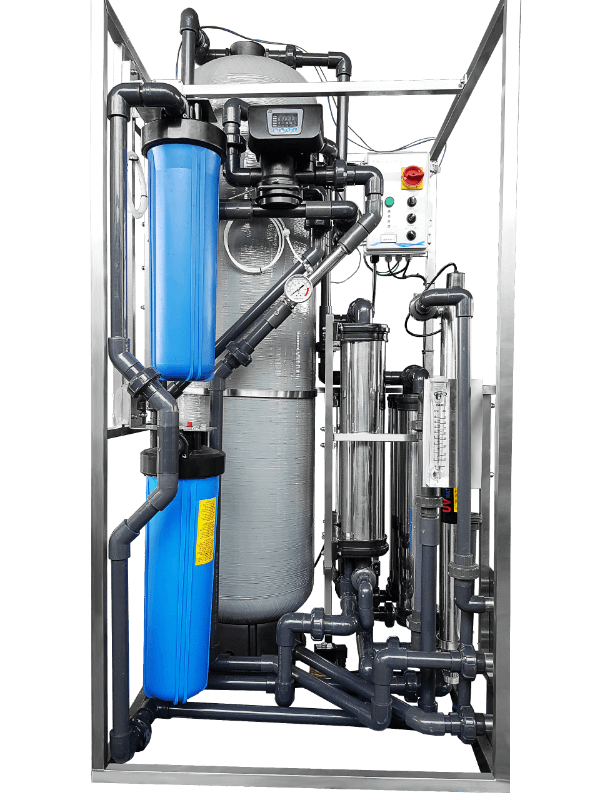

Specification:

• Size: L90 x W86 x H190 cm
• Weight: 310 kg
• One Activated filter media tank
  • Fiberglass tank 16″ x 65″ (40.64 cm x 165.1 cm) , complete with manual backwash valve.
• One UV sterilizer, 55 watts, 220 Vac 50/60 Hz
• UF filters completed with the automatic flush valve.
• Two post carbon block filter, 4.5″ x 20″ (11.43 cm x 50.8 cm) cartridge length.
• One water flow meter.
• One water pressure gauge.

Additional feature:

• Multi-Spectrum Coagulant and Flocculant for eliminating manganese iron color, Clear up cloudy water.  PRICE: 294 USD

(Include dosing pump, injector, PLC for control Injection, an injection pipe. All assembly in the waterproof control box and install in the system.)

Innovative high-efficiency water filtration system, integrating PRE-FILTRATION + ULTRAFILTRATION + UV + activated carbon water treatment techniques in a single system.

• This combination of technologies uses high quality water filters. It is 40 times more efficient than a sand filter, it can filter heavy metals such as iron, manganese, chromium, phosphate, etc…
• Incorporates a UV sterilization system to effectively kill bacteria and viruses.
• Ultrafiltration (UF) can filter down to 0.01 micron using a membrane to separate undesired materials. It filters bacteria and particles present in the water. Ultrafiltration (UF) technology is particularly popular in industrial applications.
• The activated carbon filter absorbs chemicals, odors, residual chlorine, heavy metals such as lead and copper, insecticides, detergents and high carbon products.
