Mobile Water Production Plant

MOBILE WATER PRODUCTION PLANT
mobile1
mobile4
MOBILE WATER PRODUCTION PLANT

Click Image for full size

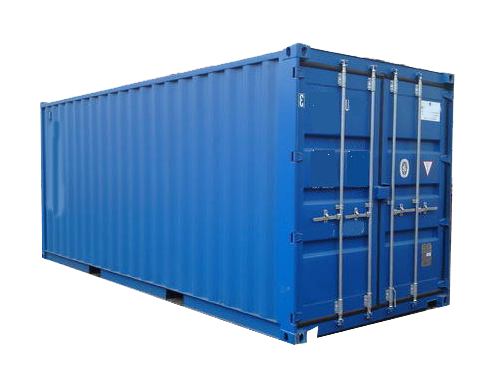

  • Complete mobile water production plant equipped with 20 feet container which can move by truck into any area which lack of clean drinking water.
  • Highly suitable for Disaster Relieve Program operated by Government officer or any private organization to help the people to get clean-sanitized drinking water: Example Area which has water Flood or Earth Quake.
  • Also Highly suitable for a Rural area which there is no electricity/no clean drinking water. This kind of plant enables the operator to keep better servicing and maintenance the water plant in a good performance.

THE CONTAINER CONCEPT

FOR SURFACE WATER TREATMENT

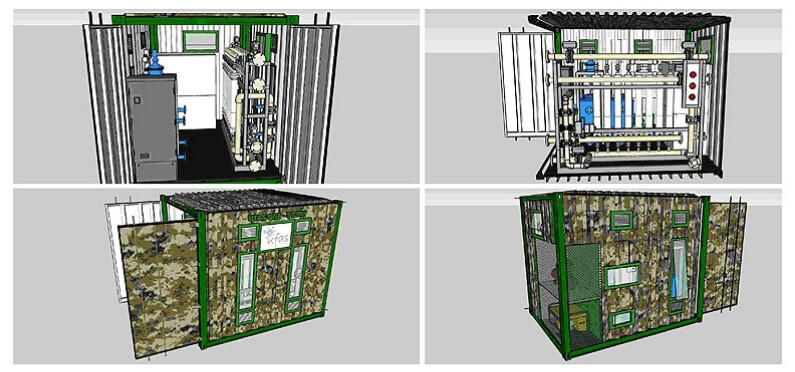

Production capacity: 5 m3 per hour

51
52

Click Image for Full Size

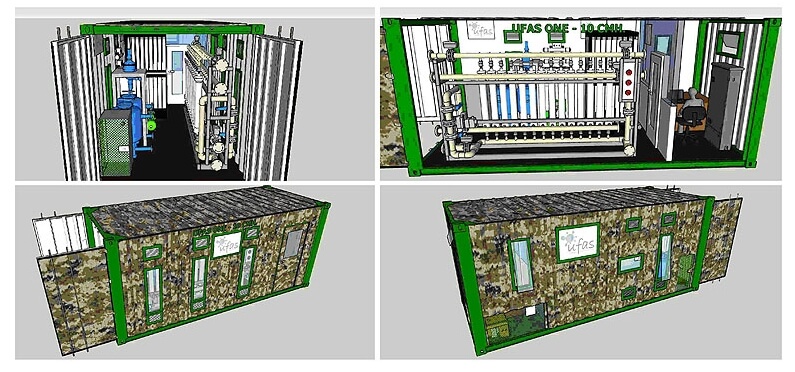

Production capacity: 10 m3 per hour

101
102

Click Image for Full Size

Interesting in our Mobile Water Production Plant

Contact Us
MOBILE WATER PRODUCTION PLANT:



    MOBILE WATER PRODUCTION PLANT:

    • Water production capacity: 5m3/hr, 10m3/hr
    • The standard model already includes gasoline/gas power generator in the container.
    • Turbidity for the standard model is 200NTU, with an optional system can be able to 1,000NTU, but cannot reduce TDS.
    • Our standard model already includes feed water pump with a 10m flexible hose.
    • Water production capacity: 5m3/hr, 10m3/hr

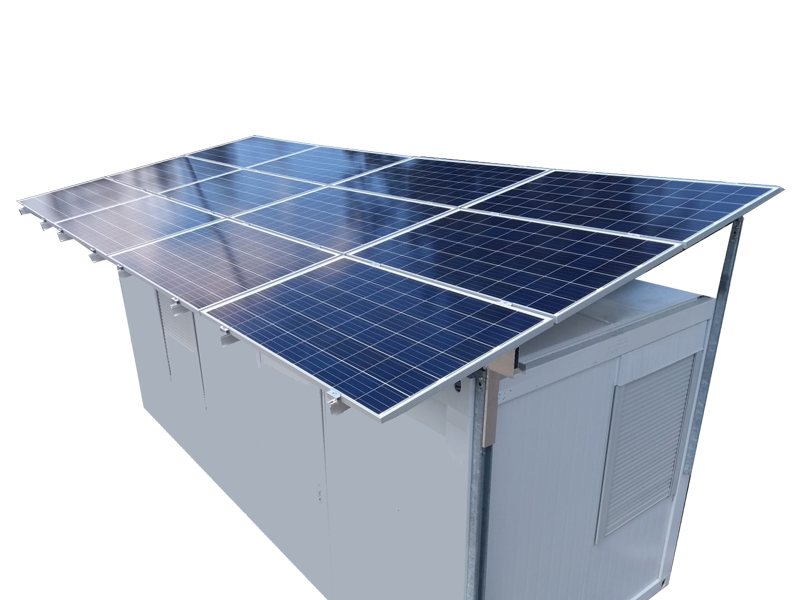

    • The standard model already includes gasoline/gas power generator in the container.Or may be equipped with Solar Cell Power if need.
      1. Option I: Designed to serve with raw water with high turbidity (standard model is 200NTU), with an optional system can be able to 1,000NTU, but cannot reduce TDS.
      2. Option II: Designed to serve with Raw water with high TDS and treat to reduce TDS to an acceptable level for drinking purpose.
    • Our standard model already includes feed water pump with a 10m flexible hose.
    mobile_plan1
    mobile_plan2
    p1
    p2

    Click Image for Full Size
