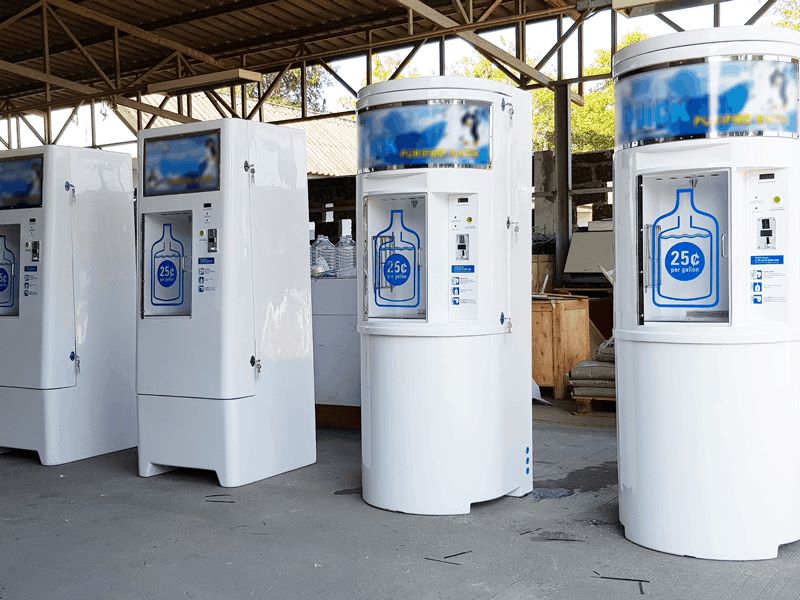

| Drinking Water Vending Machine |
- We are the original manufacturer being listed in Thailand Export Promotion Department ; Ministry of Commerce with over 10 years's experience of Manufacturing & Exporting.
- We are the Leading manufacturer based in Thailand and exporting to over 26 countries worldwide under our own specification and custom's specification.
- Along with our own 10 years experiences with investment and operation of water vending business. We exported Drinking Water Vending Machine in Various designs / Features / Capacity.

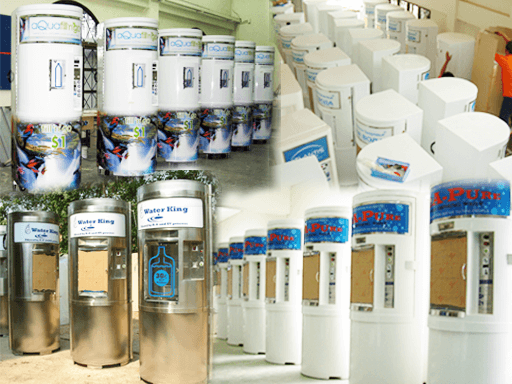

- Over 4,500 machines installed in North America, Central America, South America, Australia, Brazil, Canada, China, Cyprus, El Salvador, Ecuador, Hongkong, Kazakhstan, Ireland, Japan, Kenya, Malaysia, Mexico, New Zealand, Nigeria, Pakistan, Philippines, Penang, Saudi Arabia, Spain, Trinidad, United Kingdom, UAE to cover 26 countries globally.
|
|
|
|
|
|
|
| |
| |
One - Stop Supplier of Water Vending Machines, Criteria to properly select water vending machine to serve each market place
|
| |

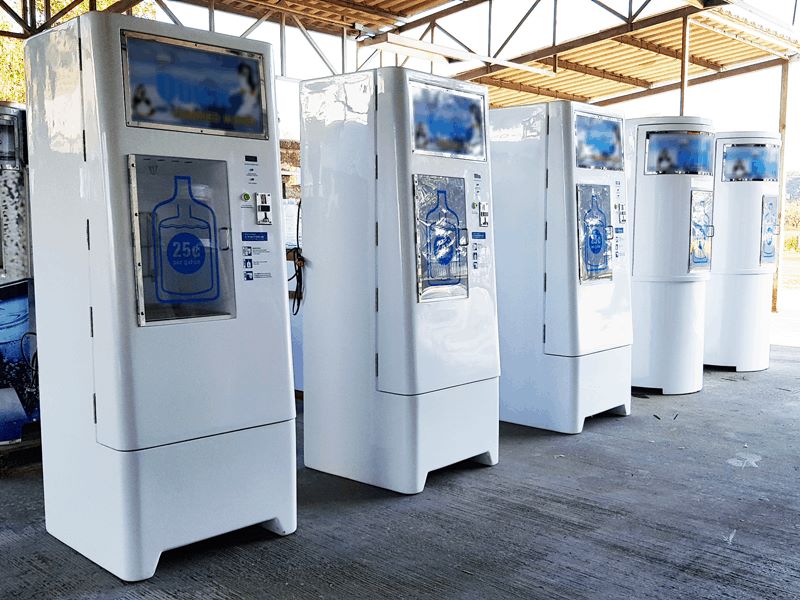

| 1. Reverse Osmosis (R.O) drinking water vending machine (13 models) |
- White Fiberglass body square shape or Circular shape, White color on standard or sky blue color or two tone upon request.
- Water filling speed = 3 Gallon per minutes
- Vend chamber for re-filling bottle sizes 0.5-20 liters
- Water dispensing control by timer or water pulse meter upon request.
- Self closing vend chamber door (spring hinge) to prevent dust contamination into vend chamber area.
- Lighted signage at night time operated by light sensor or clock timer.
- Single price selling, water selling price can program into any price on custom request.
- Selling water by coin acceptor; can programmed to accept for any coin currency (just send 10 coin samples for our programmation)
- Can accept for maximum 6 coin sizes
- During water delivery , customer can temporary stop water delivery (pause) for changing the bottle to fill the water
- Coin box can keep up to 7,000 coins
- Sales activity’s records can read by 2 coin totalizers ; first totalizer can be reset after each reading ; second totalizer cannot be reset until reach 999,999
- Can add option "PAUSE" machine when U.V lamp failed.
- Warranty term = 1 year after shipment date
|
|
| |

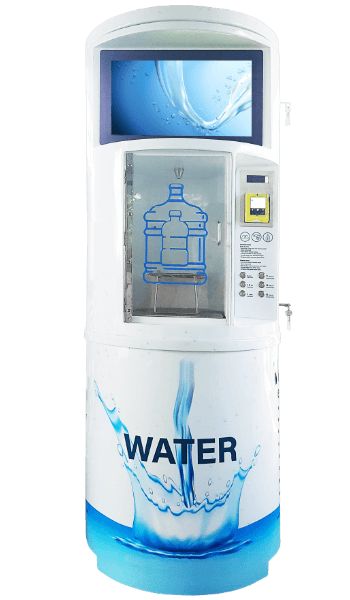

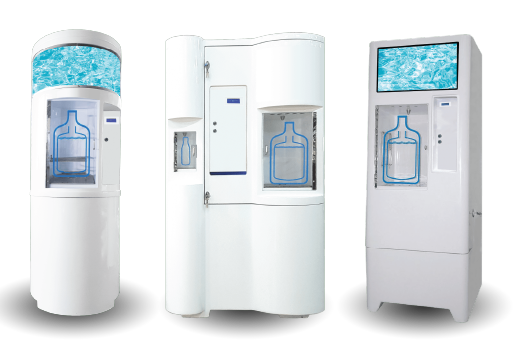

New product, fiberglass body circular shape wrapped with stainless steel 304 (click for zoom picture) |
|
| |

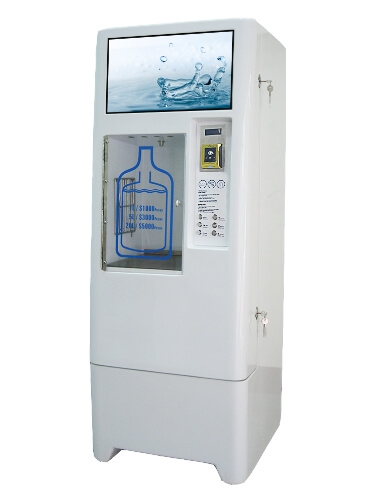

Square shaped body, White fiberglass or 2 Tones fiberglass on additional |
|
|
|
|
|
|
EWVM-950 |
EWVM-1500 |
EWVM-1500C |
EWVM-3000 |
EWVM-3000C |
EWVM-9450 |
950LPD ; 2 Tones Fiberglass |
1500LPD ; Fiberglass |
1500LPD ; Cold water |
3000LPD ; Fiberglass |
3000LPD ; Cold water |
9450LPD ; Fiberglass |
| |
|
|
|
|
|
Circular shaped body, Stainless Steel grade 304, White fiberglass or 2 Tones fiberglass on additional |
|
|
|
|
|
|
OFG-1500 |
OFG-3000 |
OFG-3000C |
OFG-9450 |
OSS-1500 |
OSS-3000 |
1500LPD ; Fiberglass |
3000LPD ; Fiberglass |
3000LPD ; Cold water |
9450LPD ; Fiberglass |
1500LPD ; Stainless Steel |
3000LPD ; Stainless Steel |
|
|
|
|
|
|
OSS-3000C |
|
|
|
|
|
3000LPD ; Cold water |
|
|
|
|
|
| |
|
|
|
|
|
Optional Features for your additional choosing :
|
- Ozone bottle washer.
- U.V inside dispensing nozzles.
- Ozone inside dispensing nozzles.
- Retractable U.V dispensing nozzle.
- Automatic float power shutoff upon water leakage.
- Smart card reader.
- RFID card reader.
- Bill note acceptor.
- Coin changer.
- GSM monitoring & controlling system (this is very important to escape from all competitors).
|
|
|

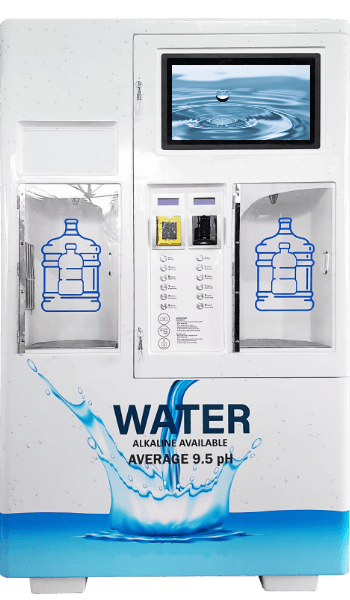

| Specialty R.O Drinking Water Vending Machine, Double Vend Compartment |
|
- Model: DUV-9450
- Production capacity = 9,450 Liters/Day or 394 Liters/Hour
- White-Fiberglass body with 2 filling chambers.
- Dimension: (W) 124 x (D) 72 x (H) 210 c.m
- Dimension of Vending chamber: (W) 35 x (D) 35 x (H) 60 c.m = 2 Chambers
- Dimension of Light marquee: 65 x 33 c.m
- Water filling speed = 10 Liters/Minute
- Filling chamber can serve for 1-20 liters bottles
- 1 Front service door with 2 key locks.
- Left Side socket include 4 ports for installation : inlet water port / reject water port / drain water port / electric input port. Therefore the rear side of the machine can install close to the wall.
- 2 Coin acceptors + 1 Coin box
- Water storage tank: 250Liters (standard) and 350Liters on request.
|
|
|
|
|
|
| |
| 2. Anti-Oxidant Drinking water machine (5 models) |
- Alkaline pH of water (pH over 8.2) to neutralize our daily consuming acidic pH food & beverage (Cola beverage have pH below 3.0 only) to keep better balancing pH in our body @7.35 level
- High capacity to reduce damages occurred during Oxidation process in our body cells (ORP lesser than - 200mV)
- Plenty of Free Negative Ions to neutralize Free radicals in our body cells
- Plenty of Far Infrared Ray to rejuvenate our body cells (also produce energized water, microclustered water)
|
|
|
|
|
|
FOX-950 |
FOX-2000 |
SOX-950 |
SOX-2000 |
OFOX-550 |
950LPD ; Fiberglass |
2000LPD ; Fiberglass |
950LPD ; Stainless Steel |
2000LPD ; Stainless Steel |
550LPD ; For Home & Office |
|
|
|
| |
| 3. Slimming Drinking Water Vending Machine (2 models) |
- Over Weight is not merely esthetic problem but reflect the disorders of internal metabolism and higher potential to have Blood & Heart diseases 4 Major benefits of our Slimming water vending machine for weight management control.
- High Purified water with the lowest Sodium content.
- Neutral pH over 7.0
- Chill Water complete with Green tea Extract & L-Carnitine mixing system.
- Plenty of Free Negative Ions to neutralize Free radicals in our body cells.
- Include Water chiller 40 liters.
- Post mixing with Amino Acid L-Carnitine+Green tea extract ; well accepted ingredients to reduce body fat.
- R.O water purification system 950 Liters/day Fslim 950 Fiberglass 950LPD
|
|
|
|
F-Slim-950 |
S-Slim-950 |
950LPD ; Fiberglass |
950LPD ; Stainless Steel |
|
|
|
|
| |
| 4. Alkaline Drinking Water Vending Machine |
- Body of the machine: White Fiberglass or Stainless Steel 304
- Production capacity: 950, 1500, 2000, 3000 Liters/Day
- pH : 8-11
- ORP : -200mV to -400mV
- TDS : 120 - 180ppm
- Power consumption : Water production system 220-450W, Water delivery system 300W, Stand-by 60W
|
| 5. Mineral Water vending machine |
- Body of the machine: White Fiberglass or Stainless Steel 304
- Production capacity: 950, 1500, 2000, 3000 Liters/Day
- TDS of product water : 120 - 180ppm
|
| 6.Ultra Filtered Water vending machine |
- Body of the machine: White Fiberglass or Stainless Steel 304
- Production capacity same as feed water.
- Less reject water from the production.
- Fine filtration rate: 0.01 micron (0.00001mm)
|
|
|
